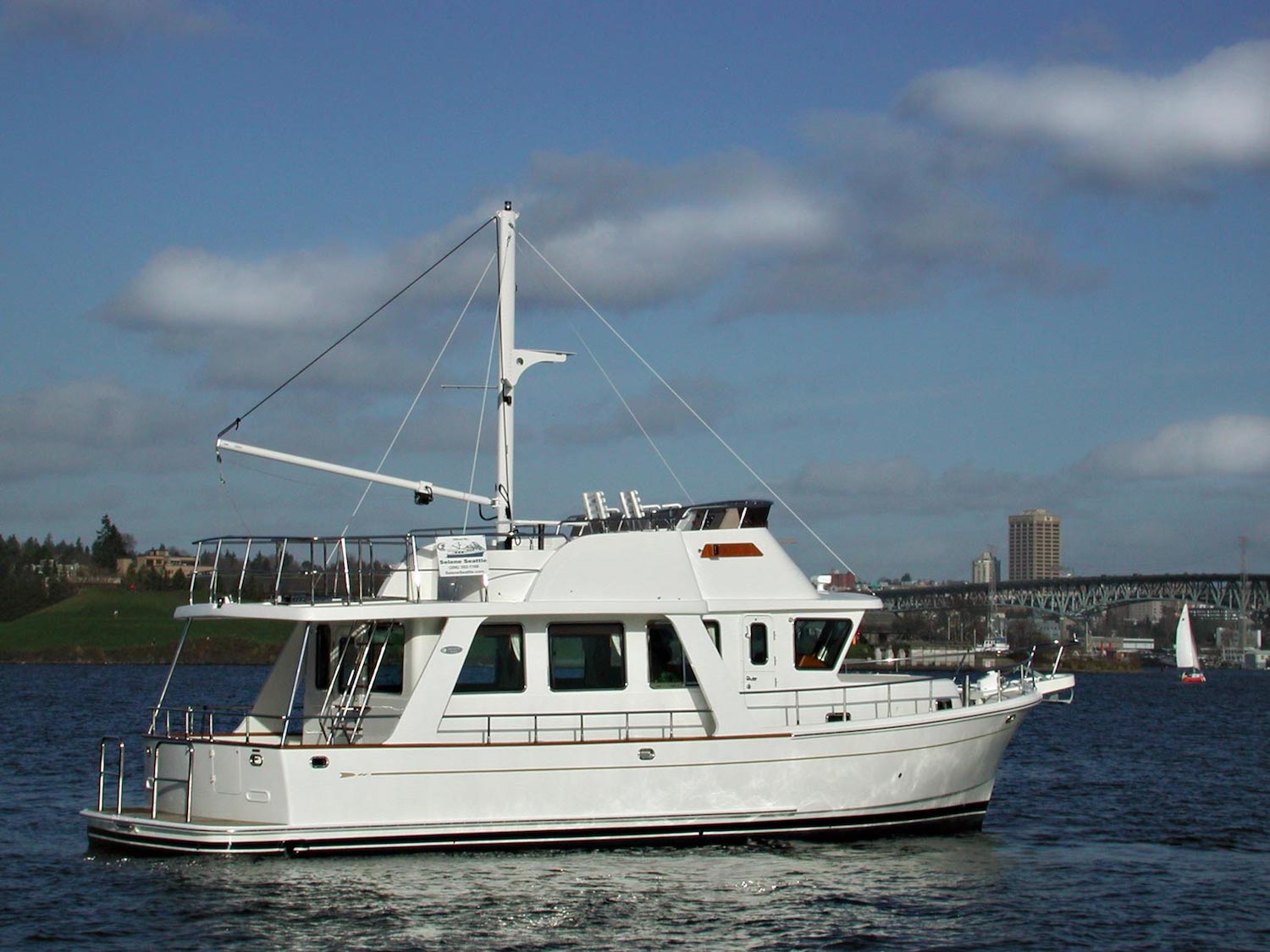

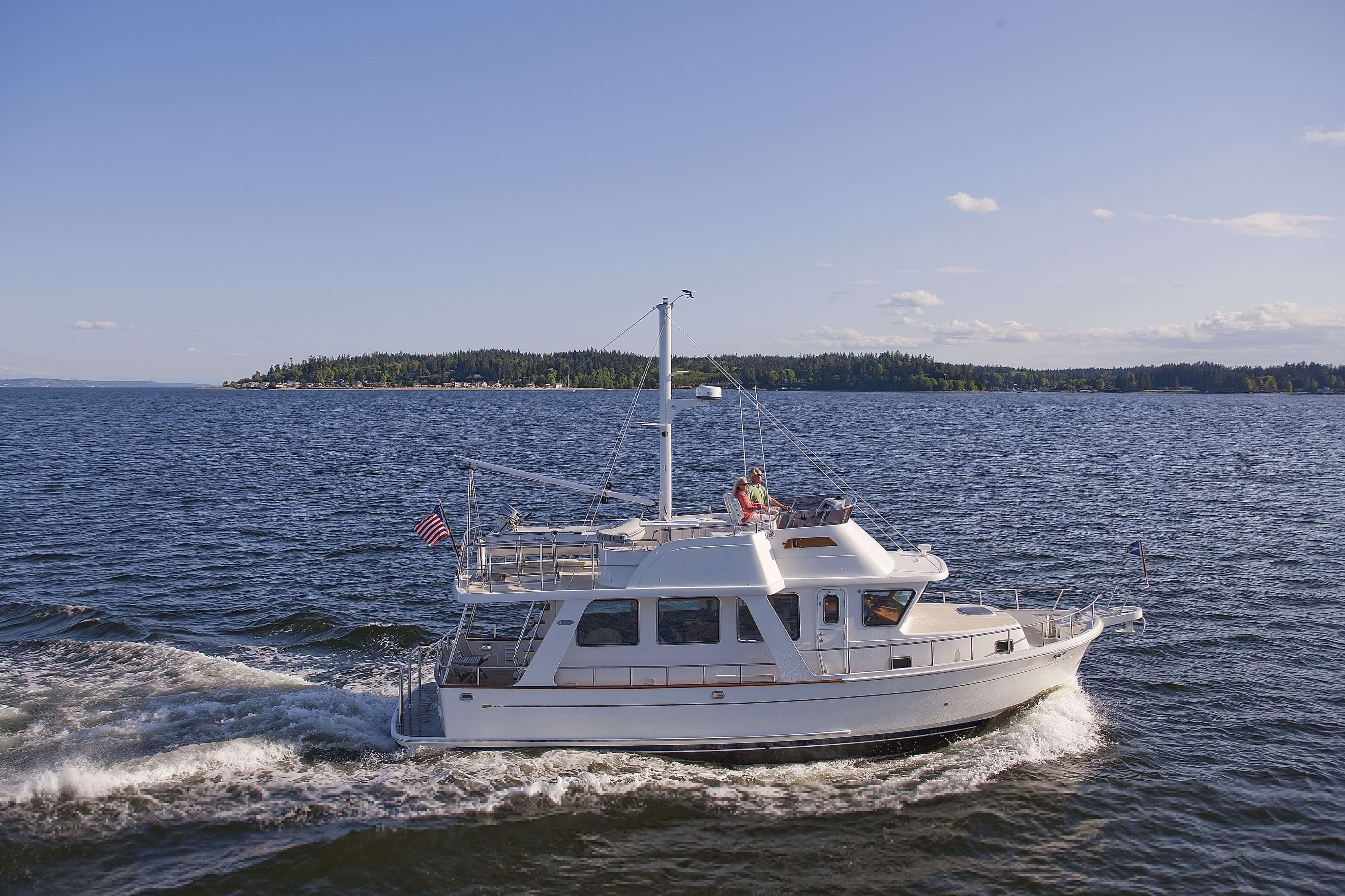

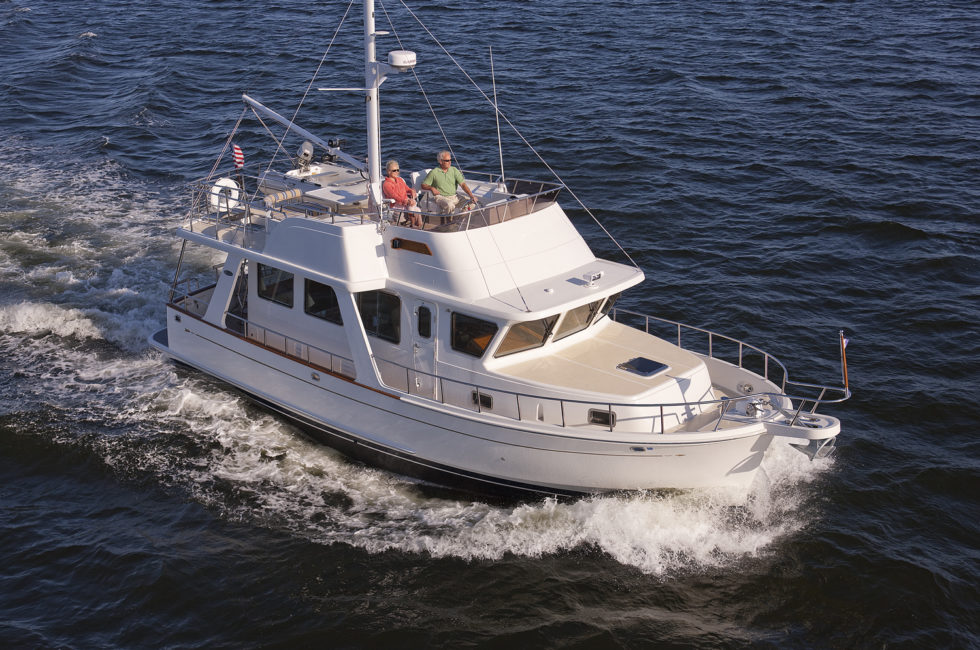

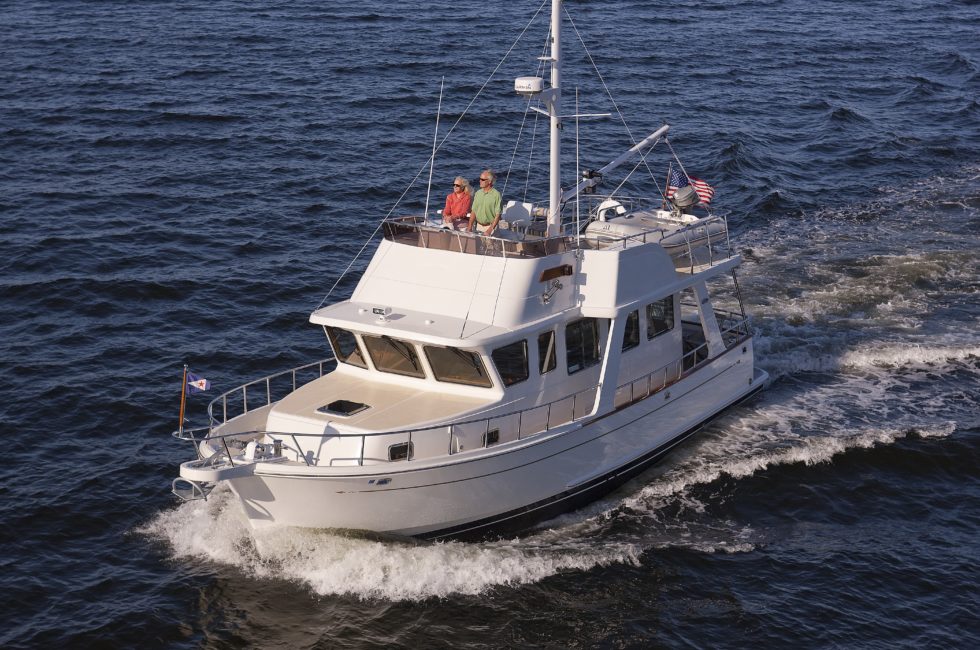

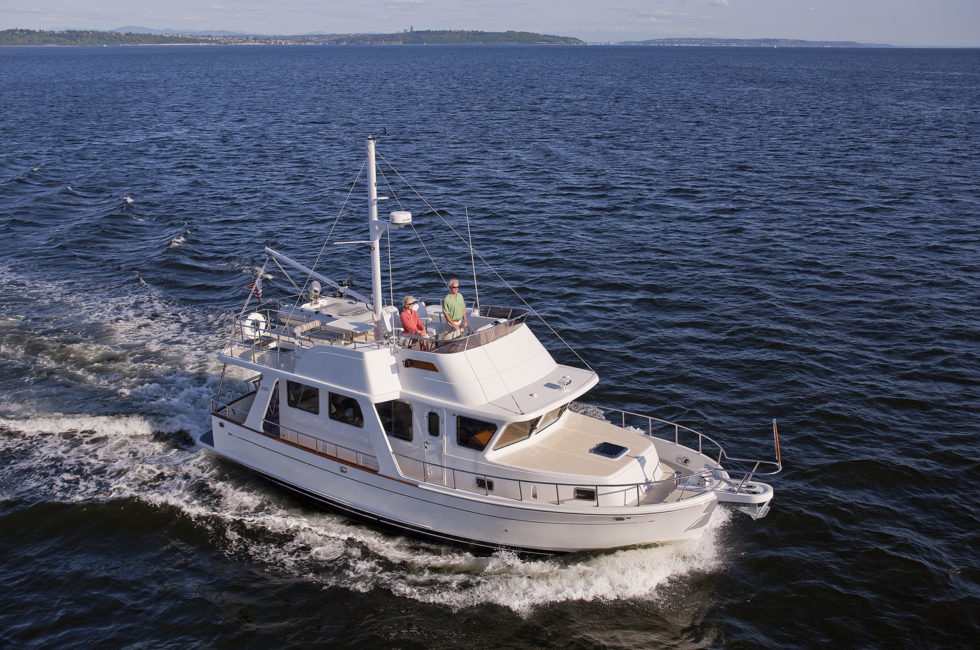

Selene 42 Voyager Sedan

Selene 42 Voyager Sedan

THE PERFECT GENTLEMAN’S YACHT

11SPEED (KNOTS)
2Cabins
1Heads
230Power (HP)

LONG RANGE COASTAL CRUISER

The Selene 42 Voyager Sedan is a newer design (2012), that Selene Yachts has  developed based on the original « Selene 42 Archer » hull with a new super structure and European, Floridian or Mediterranean flair! The yacht is designed with a single Cummins QSB 230HP or John Deere 180HP Diesel engine. The two-stateroom layout has a beautiful teak interior and a well-equipped galley. Compared with the Selene 42 Archer, it offers a more spacious salon, flybridge and engine room. The enlarged fuel tanks of 700 gallons (2650 l) will guarantee longer cruising range.

1,000 NM RANGE AT 9 KNOTS IN LUXURY

Selene Yachts received a very good response after we first presented this new design, and we are currently building hull N°42, which will be equipped with a Seakeeper gyro stabilizer! The Selene 42 Voyager Sedan is designed for long range coastal cruising in style and extended sea voyages with not less than a 1,000 NM range at 9 knots. The vessel accommodates four to six passengers in two cabins and one head with a separate shower. It sports all the features of a luxury family yacht with a generator, climate control and a large flybridge, but with elegance, simplicity and easy maintenance for the owner-operator. The Selene 42 Voyager Sedan is a typical gentleman’s boat…

Do not hesitate to contact us for more info : [email protected]

TECHNICAL SHEET

  • LOA : 45’-2’’ (13.77m)
  • LWL: 38’-5’’ (11,71m)
  • Beam: 14’-6’’ (4,42m)
  • Draft: 4’-8’’ (1,42m)
  • Air draft: 13’-7’’ (4,20m)
  • Displacement: 41,000Lbs (18,6t)
  • Fuel tank capacity: 700 USG (2650L)
  • Fresh water tank capacity: 180 USG (681L)

DOWNLOAD AREA

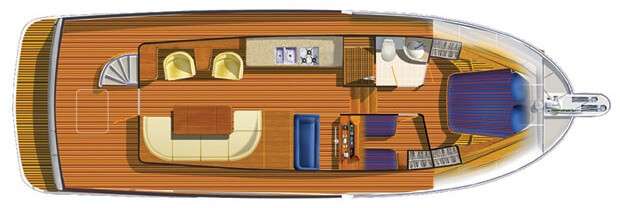

LAYOUT

DETAILS

CONSTRUCTION

• Cook gelcoat for hull, deck, superstructure & non-skid
• Vinylester resin for the first 4 layers lamination
• Cymax bi-axis uni-direction stitched roving/mat
• Taiwan Glass mat
• Corecell sandwich hull side above WL & superstructure
• Longitudinal stringers & transverse frames system
• 3 watertight bulkheads (chain well, fwd. E/R, after E/R )
• Hull/deck joint glue, bolts, laminated mat & woven roving
• Recessed bow thruster tunnel
• Integral FRP stern thruster casing
• Integral full protected keel & rudder shoe
• Hand laid FRP single skin hull bottom
• Integral swim platform with extended hull underneath
• International anti-fouling paint
• International Gelshield primer coating
• International painted boot top line

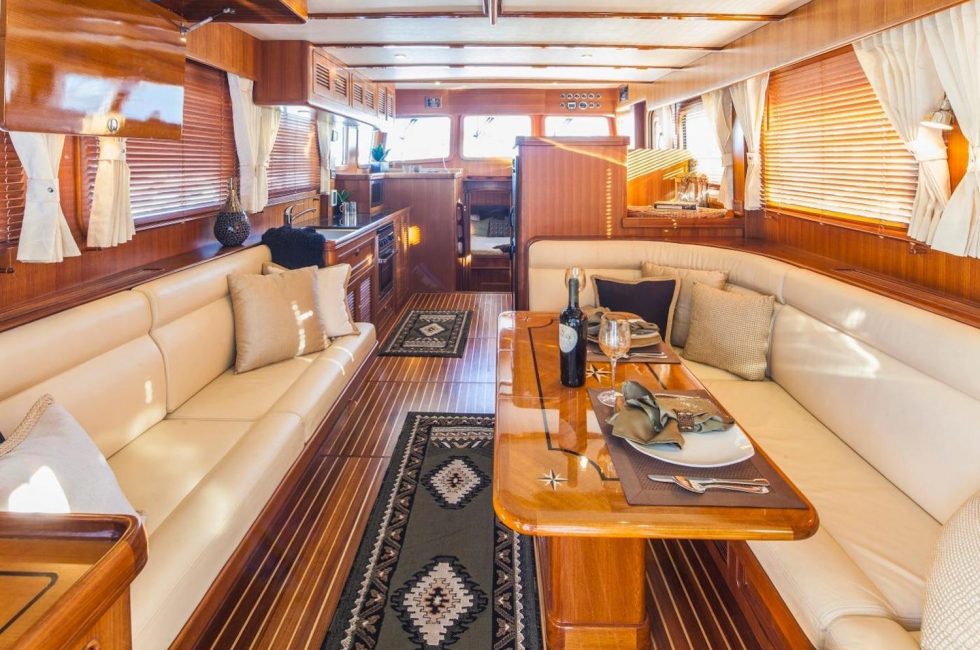

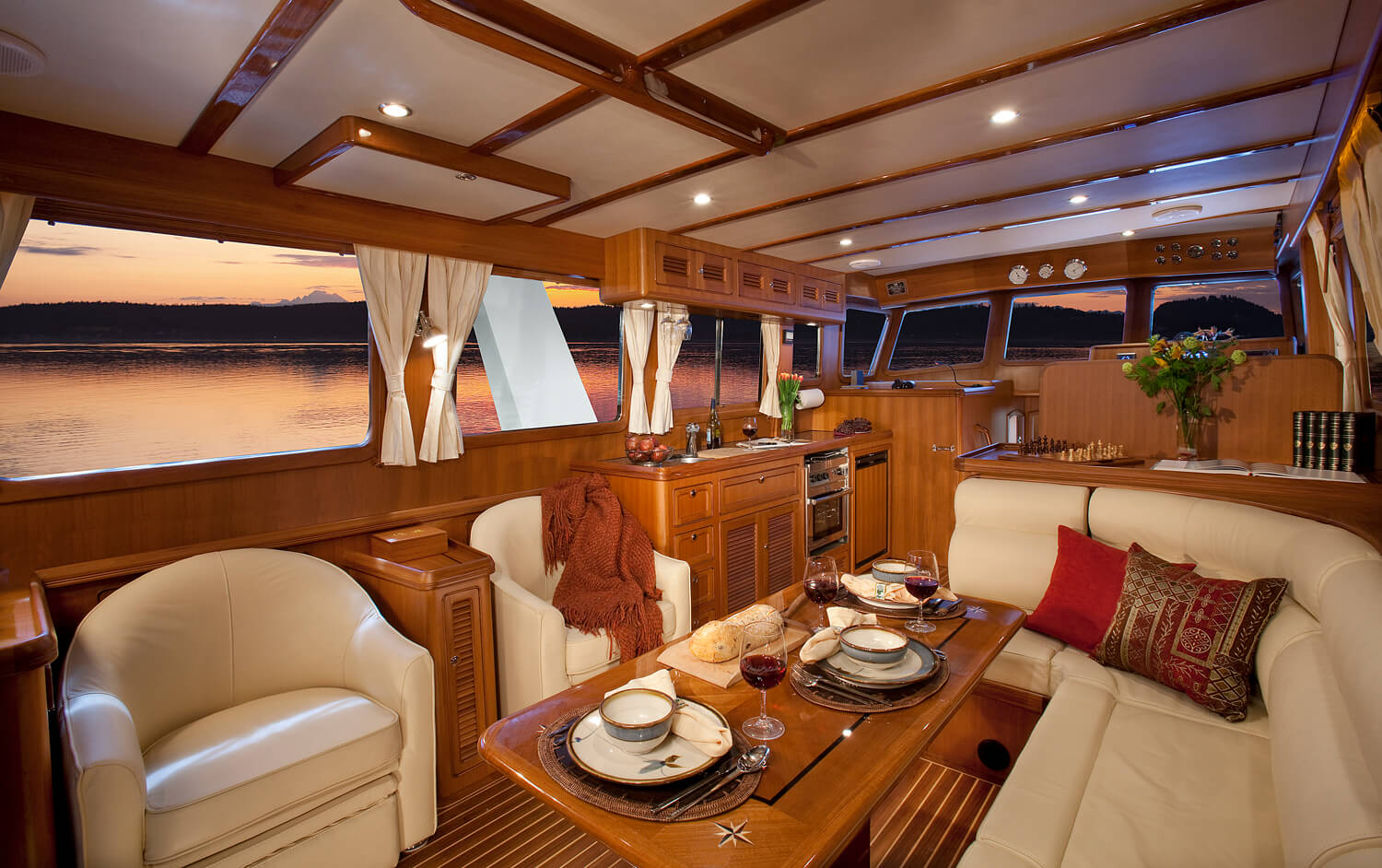

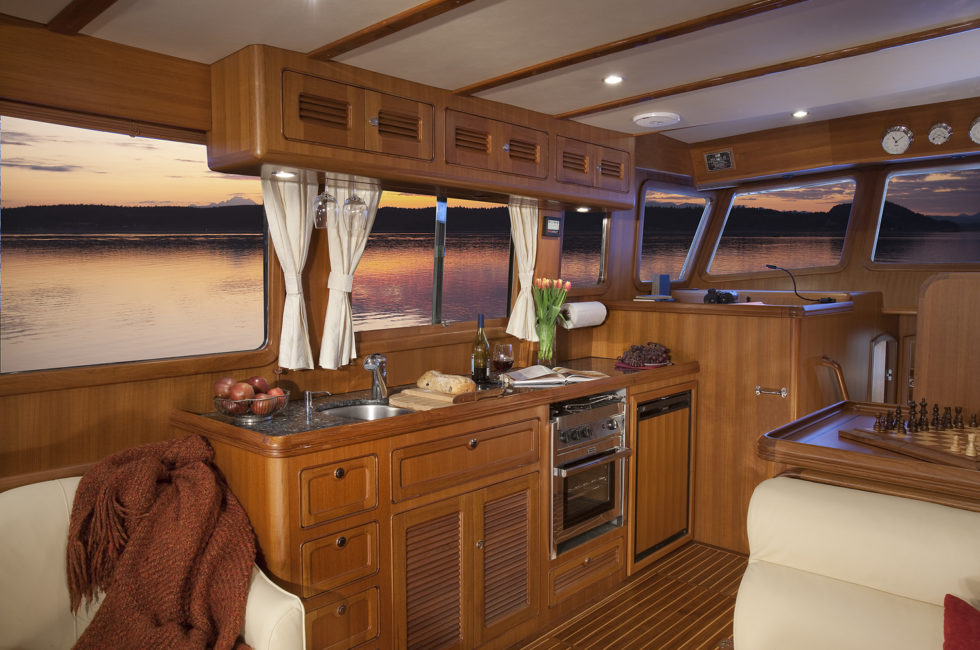

SALON & GALLEY

• U-shaped sofa w/ 5″ cushion set
• Sliding extension on port sofa for extra berth
• Fold-up or fixed Hi-Lo dining table
• Emergency hatch to engine room
• Lazarette hatch locking pin
• Door for saloon entrance
• Reading lights
• Granite counter top
• Overhead exposed teak battens with wood caps
• Teak overhead grab rail with Epifanes high gloss
• Self-lock window stopper
• 2 barrel chairs with ottoman under to port or couch (slide converts to berth)
• Overhang cabinets with wine glass storage
• Granite counter top & back splash
• Force 10 3-burners/oven LPG stove
• Jabsco 12V DC electric exhaust fan above stove
• Norcold DC/AC large refrigerator/freezer
• Single lever type faucet
• Franke S/S double sinks
• Drawers & cabinet with shelves under counter
• Trash bin

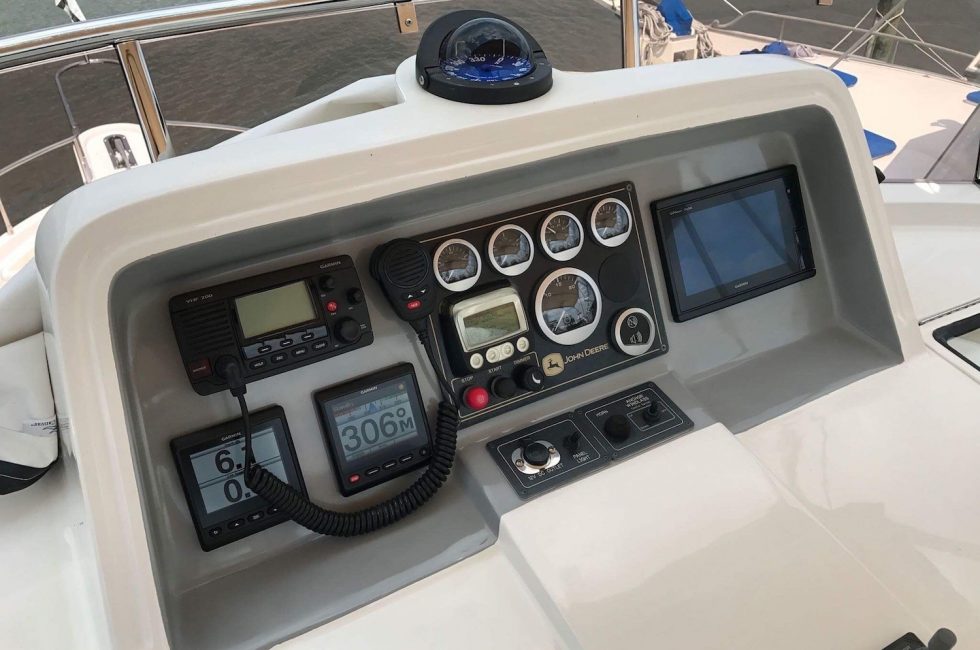

HELM

• Helm station with instruments panels
• Chart table with hinged lid and red light to port
• Digital Amp gauge
• Digital Volt gauge
• Electric engine control system
• Hi-seat with footrest
• Door to starboard to companionway
• Cantalupi step lights
• Teak stair from salon to forward staterooms

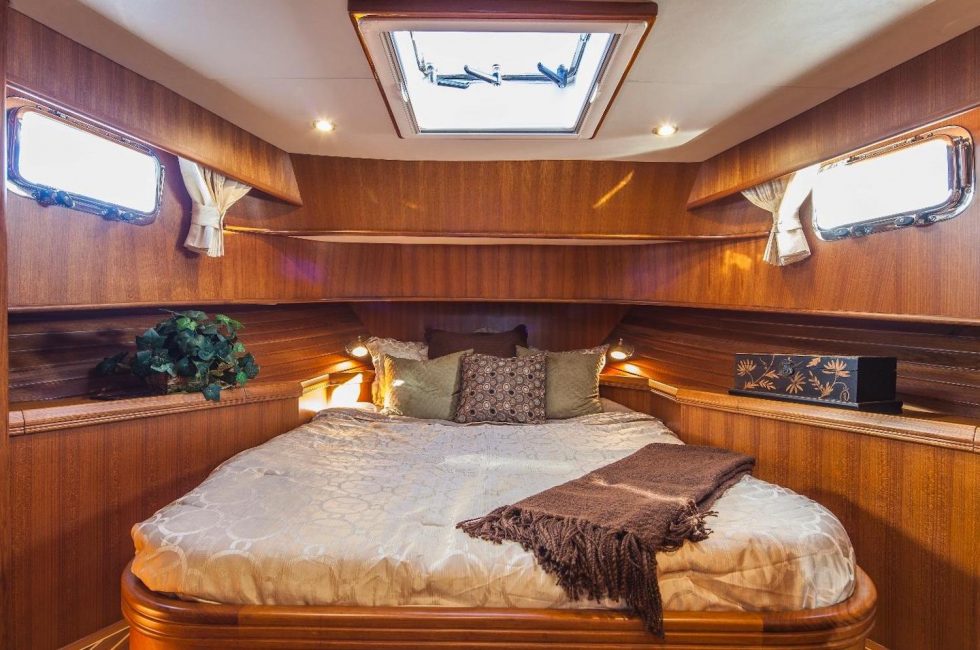

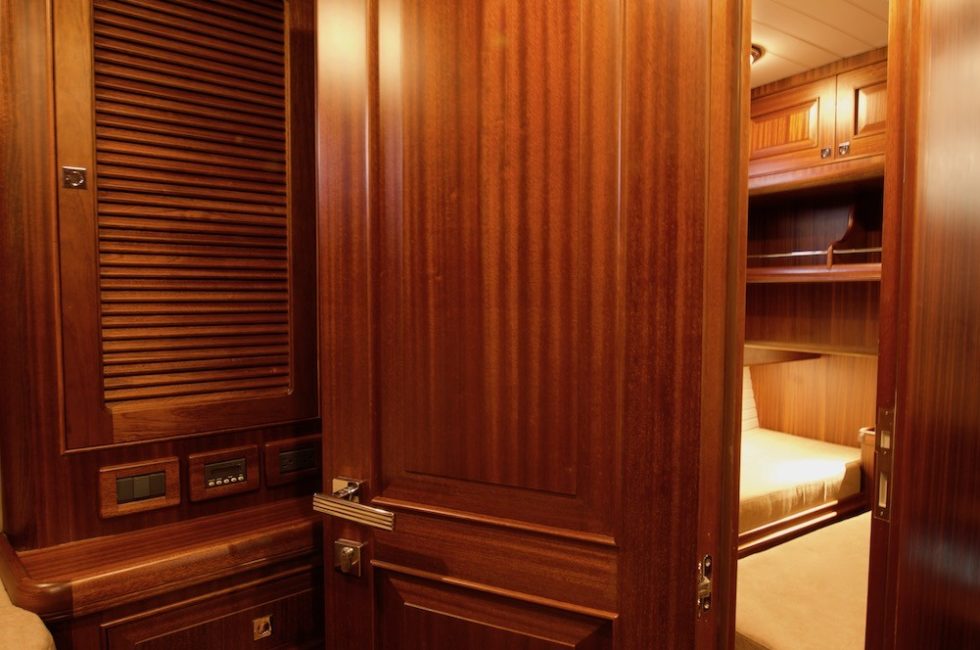

MASTER STATEROOM

• Island bed with 5″ foam mattress & filler
• Drawers & storage
• Oceanair blind/mosquito net on hatch
• Wardrobe with automatic light & aromatic cedar liner
• Teak counter tops
• Cabin reading lights
• Manship escape hatch
• Manship S/S #316 opening portlights

HEAD

• Head compartment with private door entry to master & companionway
• Vanity unit with storage
• 2 dry lockers in head & shower stall
• Porcelain wash basin with integral counter top
• Single lever hot & cold water at sink
• Shower stall with teak removable grating panel & seat
• Single lever hot & cold water shower faucet
• Tecma 12V DC freshwater toilet
• Jabsco 12V DC dia. 3″ exhaust fan
• Cantalupi dome lights
• Hubbell waterproof AC outlet in head
• Mirror with teak frame
• S/S #316 tissue paper holder

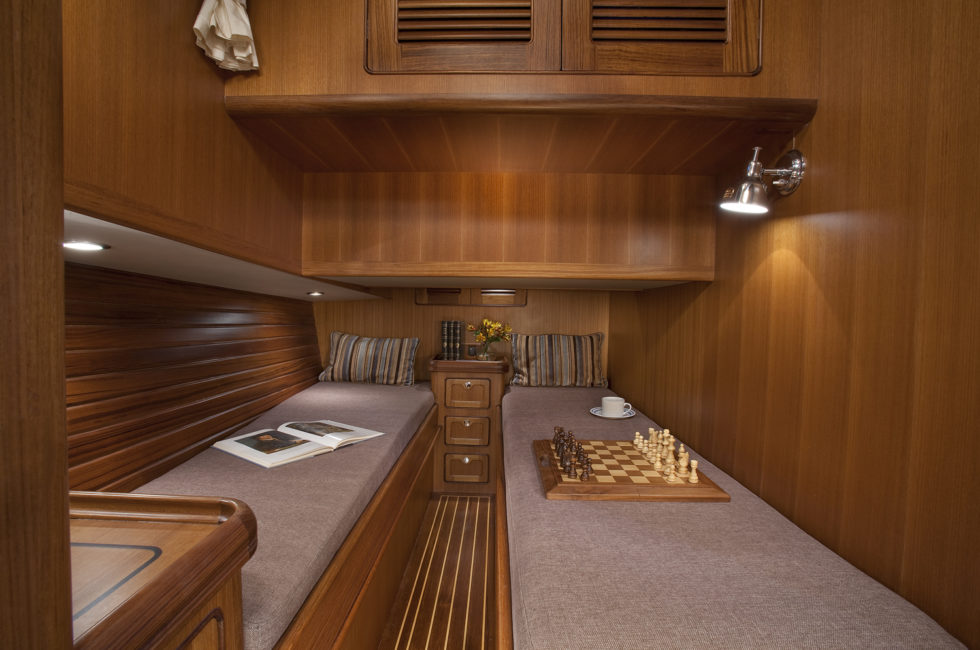

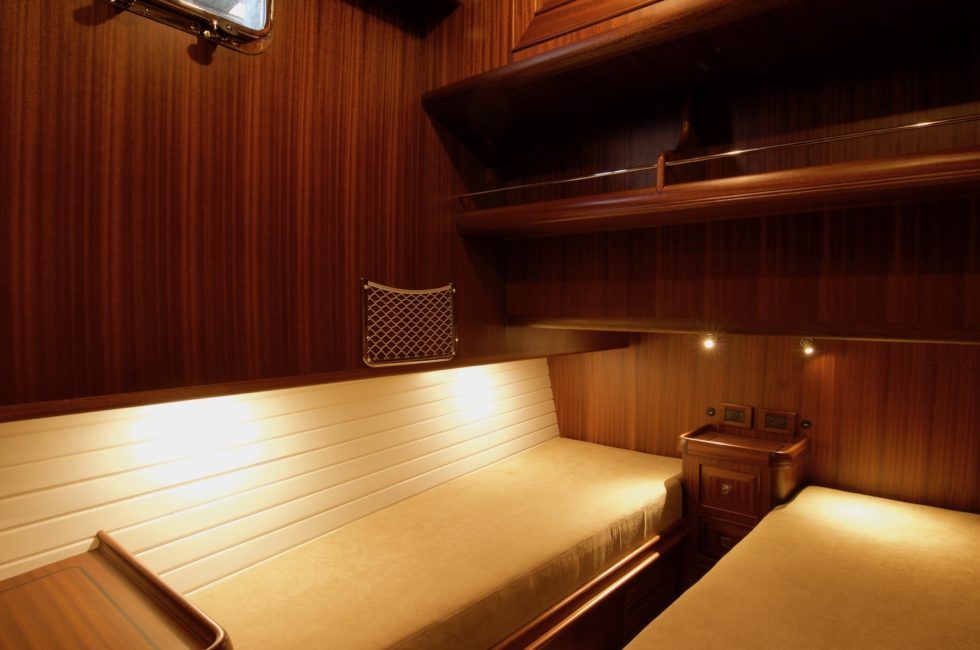

STARBOARD GUEST STATEROOM

• Two single side by side berth with 5″ foam mattress or queen size berth
• Starboard berth slides for queen size & filler
• Wardrobe with automatic light & aromatic cedar liner
• Cabin reading lights
• Manship S/S #316 opening portlights
• Drawer storage cabinet

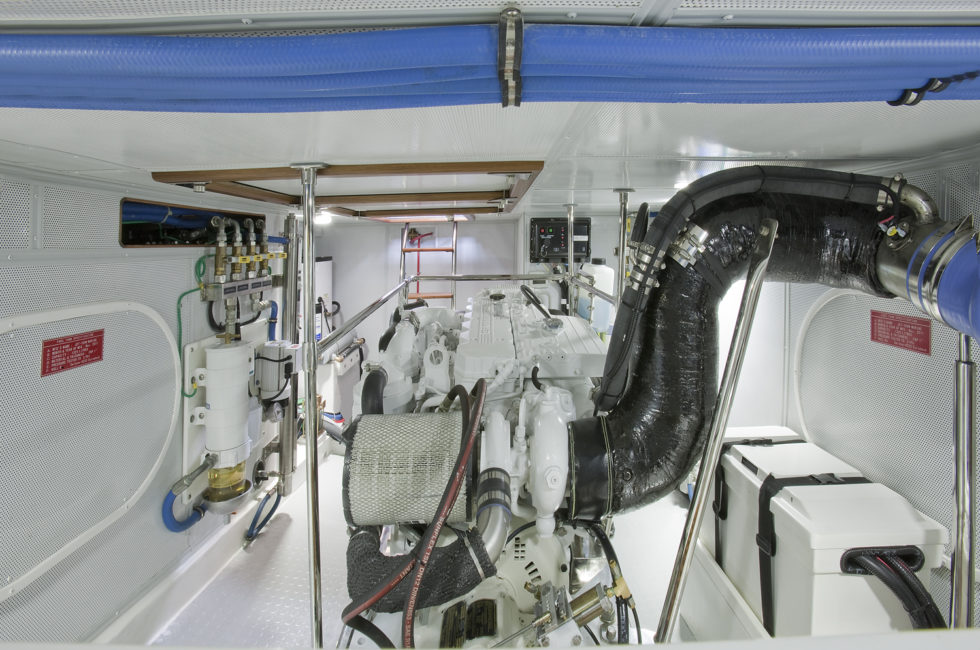

ENGINEERING

• Single John Deere 180 hp Marine Diesel Engine (optional 230HP)
• John Deere Smartcraft gauge system at each helm
• Engine panel with complete instruments & alarms at helms
• Electric Shift and Throttle control system at each helm
• Neutral Safety Switch Transmission
• Amartech shaft Tube
• Aqua #22 propeller shaft ( dia. 2″=51mm )
• PYI dripless shaft seal
• Faster NiAlBr 4 blade propeller
 • Jabsco 12V DC dia. 4″ engine room blowers
• FRP drip pan under engine
• Hydraulift FRP wet box muffler
• Full protected FRP rudder w/ S/S #316 rudder shaft
• Engine overheat & low oil pressure alarm
• 12V DC LED lights for E/R
• 240V/110VAC Fluorescent light for E/R
• Salon access to E/R
• Soundown E/R sound insulation system
• Damping tile, 3”sound insulation foam
• Aluminium perforated plate
• Hynautic hydraulic steering system for pilothouse & F/B
• Handcrafted teak wheel in pilot house
• S/S #316 dia. 28″ wheel on F/B
• Emergency tiller
• Fully protected FRP rudder with round hole to pull out shaft

ELECTRICAL SYSTEM

• 220VAC system/50Hz or 110 VAC/60Hz (US specs)
• Northern Lights 9KVA with control panel at helm
• Smart charge system
• Shore cable Marinco
• Marinco 240V 50hz 32Amp shore power inlets
• Hubbell AC outlets throughout the boat,
• GFCI in head & flybridge
• 240VAC or 110VAC AC battery charger system
• Mastervolt 30 amp galvanic isolator
• Norcold upright DC/AC refrigerator
• Raritan 12 gallons 240V AC dual heater
• AC/DC control panel w/ polarity indicator lights
• Copper bonding strap ground cable for each fitting
• Two Zinc plates at transom for grounding system
• Sidepower bow thruster 8hp electric
• AFI 12V DC air horn
• Aqua Signal navigation lights
• Exalto 12V DC electric wipers for 3 front windshields with fresh water flow
• Rule 12V DC sump pumps with automatic float switches
• Rule sump pumps with automatic float switches
• Jabsco 12V DC dia. 3″ electric exhaust fan above stove
• Cantalupi step lights for interior & exterior
• Flojet 12V DC electric pressurized fresh water pump
• Perko step lights for exterior
• 8x8D Vision AGM deep cycle batteries
• 1x8D engine & 1x8D generator starting
• Vimar Light Switch for all DC interior lights

FUEL SYSTEM

• Total capacity 700 US gallons in two tanks
• Aluminium fuel tanks with internal baffles
• Tanks with sumps, balancing lines, inspection manhole & plates
• Racor 75/900 Max dual fuel filter & water separator for engine
• Racor 75/900 Max dual fuel filter & water separator for generator
• Ball valves for fuel system
• Electric fuel gauge
• Magnetic fuel sight gauge for each fuel tank
• Fuel management system
• ESI fuel polishing system
• Rubber fuel hoses

ANCHOR & MOORING SYSTEM

• Muir 12V DC electric windlass
• S/S #316 self-launching anchor roller
• S/S #316 dia. 5″ diameter Samson post
• S/S #316 hawse hole with cleats
• FRP bow pulpit with chain wash down
• Helm flying bridge and fore deck windlass control switch

PLUMBING SYSTEM

• S/S water tanks (2) with shut off valve & sight gauge, 240 gal.
• One FRP holding tank with Y-valve
• Jabsco macerator pump, deck discharge outlet
• Remote full display panel in master head, 55 gallons
• Electric water gauge
• Raritan 12 gallons 240V AC dual hot water heater
• Plastic water piping system
• Sea cocks on all through hull fittings double hose clamps
• Bronze basket type internal sea water strainer for engine
• Rule electric bilge pumps with automatic float switch
• Whale manual bilge pump
• Shower sump pumps in head
• Bilge status panel with warning signal at helm station

OPTIONS

• Seakeeper 5 stabilizer in lazarette or ABT hydraulic stabilizers
• Bimini on flying bridge
• S/S #316 staples on swim platform
• Watermaker preparation and/or installation
• Fire suppression system in E/R
• Spurrs line cutter on propeller
• Oil change system Reverso
• Side power stern thruster
• Automatic S/S fender clamps
• Hydraulic Key-Power get-home system
• Inverter
• Air conditioning
• Diesel heater
• Cruiser stern under swim-platform
